2016-10-18 08:34 瀏覽：-【上海】不銹鋼齒輪油泵找哪家好？-遠東泵業 廠家直銷

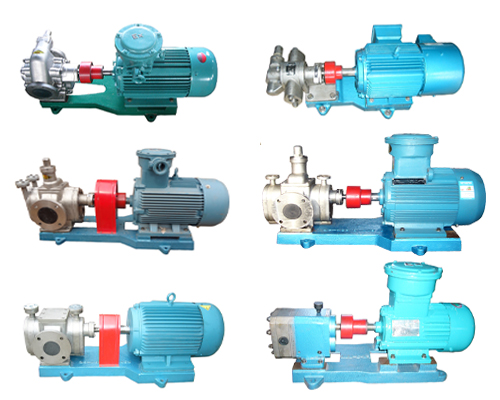

采購不銹鋼齒輪油泵，誰不想買到質量好的上等貨呢！但偏偏有很多客戶都會上當受騙，因為追求低價，因為心存僥幸。在這里遠東泵業提醒大家：有舍才有得，只有選擇可靠的不銹鋼齒輪油泵生產廠家，才會買到可靠的不銹鋼齒輪油泵哦。您要是不信的話，就來看看遠東生產的不銹鋼系列齒輪油泵吧！遠東泵業生產KCB不銹鋼齒輪油泵,2CY不銹鋼齒輪油泵,YCB不銹鋼圓弧齒輪泵,YCB不銹鋼保溫圓弧齒輪油泵,RCB不銹鋼保溫齒輪油泵,FXA-FXB不銹鋼外潤滑齒輪泵.遠東不銹鋼系列齒輪泵廣泛適用于化工,船舶,石油,食物,日化,油田,油庫,煉油廠,不銹鋼材質特別適用于輸送輸送無潤滑性的油料、飲料、腐蝕性的液體。鑄鐵材質輸送5-1500cst的潤滑或類似潤滑油的其他液體。
KCB不銹鋼齒輪油泵,2CY不銹鋼齒輪油泵選型參數表：
型 號 | 流量 | 壓力 | 真空度 | 進出口徑 | 進出口距離 | 配用電機 | 功率 |
KCB18.3 | 1.1 | 1.45MPa | 5 | G3/4" | 200 | Y90L-4 | 1.5KW |
KCB33.3 | 2 | 1.45MPa | 5 | G3/4" | 200 | Y100L1-4 | 2.2KW |
KCB55 | 3.3 | 0.33MPa | 5 | G1" | 200 | Y90L-4 | 1.5KW |
KCB83.3 | 5 | 0.33MPa | 5 | G11/2" | 200 | Y100L2-4 | 2.2KW |
KCB133 | 8 | 0.33MPa | 5 | G2" | 260 | Y132S-6 | 3KW |
2CY8/6 | 8 | 0.6MPa | 5 | G2" | 260 | Y132M1-6 | 4KW |
2CY8/10 | 8 | 1.0MPa | 5 | G2" | 260 | Y132M2-6 | 5.5KW |
2CY12/1.3 | 12 | 0.13MPa | 5 | G2" | 260 | Y112M-4 | 4KW |
KCB200 | 12 | 0.33MPa | 5 | G2" | 260 | Y132S-4 | 5.5KW |
2CY12/6 | 12 | 0.6MPa | 5 | G2" | 260 | Y132S-4 | 5.5KW |
2CY12/10 | 12 | 1.0MPa | 5 | G2" | 260 | Y132M-4 | 7.5KW |
KCB300 | 18 | 0.36MPa | 5 | 70 | 234 | Y132M2-6 | 5.5KW |
2CY18/6 | 18 | 0.6MPa | 5 | 70 | 234 | Y160M-6 | 7.5KW |
KCB483 | 29 | 0.36MPa | 5 | 70 | 234 | Y132M-4 | 7.5KW |
2CY29/6 | 29 | 0.6MPa | 5 | 70 | 234 | Y160M-4 | 11KW |
KCB633 | 38 | 0.28MPa | 5 | 100 | 280 | Y160L-6 | 11KW |
2CY38/6 | 38 | 0.6MPa | 5 | 100 | 280 | Y200L2-6 | 22KW |
KCB960 | 60 | 0.3MPa | 5 | 100 | 280 | Y180L-4 | 22KW |
YCB不銹鋼圓弧齒輪泵,YCB不銹鋼保溫圓弧齒輪油泵選型參數表：
| 型號 | 流量 Q | 轉速 n r/min | 排出壓力 p Mpa | 必需汽 蝕余量 r m | 效率 η % | 電動機 | ||
| m3/h | 頻率 Hz | 功率KW | 型號 | |||||
| YCB0.6-0.6 | 0.6 | 910 | 0.6 | 5.5 | 32 | 50 | 0.75 | Y90S-6 |
| 1.0 | 1390 | 50 | 0.75 | Y80L2-4 | ||||
| 0.7 | 1130 | 60 | 0.75 | Y90S-6 | ||||
| 1.2 | 1710 | 60 | 0.75 | Y80L2-4 | ||||
| YCB0.6-1.6 | 0.6 | 910 | 1.6 | 7.0 | 70 | 50 | 1.1 | Y90L-6 |
| 1.0 | 1400 | 50 | 1.5 | Y90L-4 | ||||
| 0.7 | 1130 | 60 | 1.1 | Y90L-6 | ||||
| 1.2 | 1710 | 60 | 1.1 | Y90S-4 | ||||
| YCB1.6-0.6 | 1.6 | 910 | 0.6 | 5.5 | 42 | 50 | 0.75 | Y90S-6 |
| 2.5 | 1400 | 50 | 1.1 | Y90S-4 | ||||
| 1.9 | 1130 | 60 | 1.1 | Y90L-6 | ||||
| 3.0 | 1710 | 60 | 1.5 | Y90L-4 | ||||
| YCB1.6-1.6 | 1.6 | 940 | 1.6 | 7.0 | 71 | 50 | 2.2 | Y112M-6 |
| 2.5 | 1440 | 50 | 4 | Y112M-4 | ||||
| 1.9 | 1150 | 60 | 2.2 | Y112M-6 | ||||
| 3.0 | 1750 | 60 | 4 | Y112M-4 | ||||
| YCB3.3-0.6 | 3.3 | 940 | 0.6 | 5.0 | 60 | 50 | 1.5 | Y100L-6 |
| 5.0 | 1420 | 50 | 2.2 | Y100L1-4 | ||||
| 4.0 | 1150 | 60 | 1.5 | Y100L-6 | ||||
| 6.0 | 1730 | 60 | 2.2 | Y100L1-4 | ||||
| YCB3.3-1.6 | 3.3 | 960 | 1.6 | 7.0 | 72 | 50 | 5.5 | Y132M2-6 |
| 5.0 | 1440 | 50 | 7.5 | Y132M-4 | ||||
| 4.0 | 1170 | 60 | 4 | Y132M1-6 | ||||
| 6.0 | 1750 | 60 | 7.5 | Y132M-4 | ||||
| YCB4-0.6 | 4.0 | 940 | 0.6 | 5.0 | 60 | 50 | 1.5 | Y100L-6 |
| 6.0 | 1420 | 50 | 2.2 | Y100L1-4 | ||||
| 4.8 | 1150 | 60 | 2.2 | Y112M-6 | ||||
| 7.2 | 1730 | 60 | 3 | Y100L2-4 | ||||
| YCB4-1.6 | 4.0 | 960 | 1.6 | 7.0 | 72 | 50 | 5.5 | Y132M2-6 |
| 6.0 | 1440 | 50 | 7.5 | Y132M-4 | ||||
| 4.8 | 1170 | 60 | 5.5 | Y132M-6 | ||||
| 7.2 | 1750 | 60 | 7.5 | Y132M-4 | ||||
| YCB8-0.6 | 8.0 | 960 | 0.6 | 5.0 | 61 | 50 | 3 | Y132S-6 |
| 12.0 | 1440 | 50 | 5.5 | Y132S-4 | ||||
| 9.6 | 1170 | 60 | 4 | Y132M1-6 | ||||
| 14.4 | 1750 | 60 | 5.5 | Y132S-4 | ||||
| YCB8-1.6 | 8.0 | 970 | 1.6 | 7.0 | 75 | 50 | 11 | Y160L-6 |
| 12.0 | 1460 | 50 | 15 | Y160L-4 | ||||
| 9.6 | 1170 | 60 | 11 | Y160L-6 | ||||
| 14.4 | 1760 | 60 | 15 | Y160L-4 | ||||
| YCB10-0.6 | 10.0 | 960 | 0.6 | 5.0 | 62 | 50 | 4 | Y132M1-6 |
| 15.0 | 1440 | 50 | 5.5 | Y132S-4 | ||||
| 12.0 | 1170 | 60 | 5.5 | Y132M2-6 | ||||
| 18.0 | 1750 | 60 | 7.5 | Y132M-4 | ||||
| YCB10-1.6 | 10.0 | 970 | 1.6 | 7.0 | 76 | 50 | 11 | Y160L-6 |
| 15.0 | 1470 | 50 | 15 | Y160L-4 | ||||
| 12.0 | 1170 | 60 | 11 | Y160L-6 | ||||
| 18.0 | 1770 | 60 | 18.5 | Y160L-4 | ||||
| YCB20-0.6 | 20.0 | 970 | 0.6 | 5.0 | 68 | 50 | 7.5 | Y160M-6 |
| 24.0 | 1170 | 60 | 7.5 | Y160M-6 | ||||
| YCB25-0.6 | 25.0 | 970 | 0.6 | 5.5 | 69 | 50 | 11 | Y160L-6 |
| 30.0 | 1170 | 60 | 11 | Y160L-6 | ||||
| YCB30-0.6 | 30.0 | 970 | 0.6 | 5.5 | 70 | 50 | 11 | Y160L-6 |
| 36.0 | 1170 | 60 | 11 | Y160L-6 | ||||
| YCB40-0.6 | 40.0 | 970 | 0.6 | 5.5 | 72 | 50 | 15 | Y180L-6 |
| 48.0 | 1180 | 60 | 15 | Y180L-6 | ||||
| YCB50-0.6 | 50.0 | 970 | 0.6 | 5.5 | 72 | 50 | 22 | Y200L2-6 |
| 60.0 | 1180 | 60 | 22 | Y200L2-6 | ||||
RCB不銹鋼保溫齒輪油泵選型參數表：
型號 | 吸入以及 | 規定流量 | 規定壓力 | 吸上 | 電機功率 | 轉速 | 電機型號 | |
m3/n | L/min | |||||||
RCB1/0.6 | ф25 | 1 | 18.3 | 0.6 | 5 | 1.1 | 910 | Y90L-6 |
RCB1.5/0.6 | ф25 | 1.5 | 25 | 0.6 | 5 | 1.5 | 1400 | Y90L-4 |
RCB2.2/0.6 | ф25 | 2.2 | 36 | 0.6 | 5 | 1.5 | 910 | Y100L-6 |
RCB3.3/0.6 | ф25 | 3.3 | 55 | 0.6 | 5 | 2.2 | 1400 | Y100L-4 |
RCB3/0.6 | ф40 | 3 | 50 | 0.6 | 5 | 1.5 | 910 | Y100-4 |
RCB5/0.6 | ф40 | 5 | 83.3 | 0.6 | 5 | 2.2 | 1420 | Y100L-6 |
RCB6/0.6 | ф50 | 6 | 100 | 0.6 | 5 | 2.2 | 710 | Y100L-4 |
RCB8/0.6 | ф50 | 8 | 135 | 0.6 | 5 | 3 | 960 | Y132S-8 |
RCB12/0.6 | ф50 | 12 | 200 | 0.6 | 5 | 5.5 | 1440 | Y132S-6 |
RCB18/0.6 | ф65 | 18 | 300 | 0.6 | 5 | 7.5 | 960 | Y160M-6 |
RCB29/0.6 | ф65 | 29 | 483 | 0.6 | 5 | 11 | 1460 | Y160M-4 |
RCB38/0.28 | ф100 | 38 | 633 | 0.28 | 5 | 15 | 970 | Y180L-6 |
RCB58/0.28 | ф100 | 58 | 960 | 0.28 | 5 | 22 | 1470 | Y180L-4 |
RCB72/0.6 | ф150 | 72 | 1200 | 0.6 | 5 | 37 | 740 | Y280S-8 |
RCB96/0.6 | ф150 | 96 | 1600 | 0.6 | 5 | 45 | 980 | Y280S-6 |
FXA-FXB不銹鋼外潤滑齒輪泵選型參數表：
| 型號 | 流量 | 排出壓力 | 通徑 | 吸上高度 | 轉速 | 功率 | 電動機型號 | |
| m3/h | L/min | |||||||
| FXA-0.6/0.6 | 0.6 | 10 | 0.6 | G3/4" | 3 | 910 | 0.75 | Y90S-6 |
| FXA-1/0.6 | 1 | 16 | 0.6 | G3/4" | 3 | 910 | 0.75 | Y90S-6 |
| FXA-1.5/0.6 | 1.5 | 25 | 0.6 | G3/4" | 3 | 910 | 1.1 | Y90L-6 |
| FXA-2/0.6 | 2 | 33.3 | 0.6 | G3/4" | 3 | 910 | 1.1 | Y90L-6 |
| FXA-3/0.6 | 3 | 50 | 0.6 | G1" | 3 | 940 | 1.5 | Y100L-6 |
| FXA-4/0.6 | 4 | 66.7 | 0.6 | G1" | 3 | 940 | 2.2 | Y112M-6 |
| FXA-5/0.6 | 5 | 83.3 | 0.6 | G1 1/2" | 3 | 940 | 2.2 | Y112M-6 |
| FXA-6/0.6 | 6 | 100 | 0.6 | G1 1/2" | 3 | 960 | 3 | Y132S-6 |
| FXA-7.5/0.6 | 7.5 | 125 | 0.6 | G1 1/2" | 3 | 960 | 3 | Y132S-6 |
| FXB-0.6/1.0 | 0.6 | 10 | 1.0 | φ18 | 3 | 910 | 0.75 | Y90S-6 |
| FXB-1/1.0 | 1 | 16 | 1.0 | φ20 | 3 | 910 | 1.1 | Y90L-6 |
| FXB-1.5/1.0 | 1.5 | 25 | 1.0 | φ20 | 3 | 910 | 1.1 | Y90L-6 |
| FXB-2/1.0 | 2 | 33.3 | 1.0 | φ20 | 3 | 940 | 1.5 | Y100L-6 |
| FXB-3/1.0 | 3 | 50 | 1.0 | φ25 | 3 | 940 | 2.2 | Y112M-6 |
| FXB-4/1.0 | 4 | 66.7 | 1.0 | φ35 | 3 | 960 | 3 | Y132S-6 |
| FXB-5/1.0 | 5 | 83.3 | 1.0 | φ35 | 3 | 960 | 3 | Y132M1-6 |
| FXB-6/1.0 | 6 | 100 | 1.0 | φ35 | 3 | 960 | 4 | Y132M1-6 |
| FXB-8/0.6 | 8 | 133 | 0.6 | φ40 | 3 | 960 | 4 | Y132M2-6 |
| FXB-8/1.0 | 8 | 133 | 1.0 | φ40 | 3 | 960 | 5.5 | Y132M1-6 |
| FXB-10/0.6 | 10 | 160 | 0.6 | φ50 | 3 | 960 | 4 | Y132M2-6 |
| FXB-10/1.0 | 10 | 160 | 1.0 | φ50 | 3 | 960 | 5.5 | Y132M1-6 |
| FXB-12/0.6 | 12 | 200 | 0.6 | φ50 | 3 | 960 | 4 | Y132M1-6 |
| FXB-12/1.0 | 12 | 200 | 1.0 | φ50 | 3 | 960 | 5.5 | Y132M2-6 |
| FXB-15/0.6 | 15 | 250 | 0.6 | φ70 | 3 | 960 | 5.5 | Y132M2-6 |
| FXB-15/1.0 | 15 | 250 | 1.0 | φ70 | 3 | 960 | 5.5 | Y132M2-6 |
| FXB-18/0.6 | 18 | 300 | 0.6 | φ70 | 3 | 960 | 5.5 | Y132M2-6 |
| FXB-18/1.0 | 18 | 300 | 1.0 | φ70 | 3 | 970 | 7.5 | Y160M-6 |
| FXB-20/0.6 | 20 | 333.3 | 0.6 | φ70 | 3 | 970 | 7.5 | Y160M-6 |
| FXB-20/1.0 | 20 | 333.3 | 1.0 | φ70 | 3 | 970 | 7.5 | Y160M-6 |
| FXB-25/1.0 | 25 | 417 | 1.0 | φ70 | 3 | 1440 | 11 | Y160M-4 |
不銹鋼齒輪油泵哪家好？-遠東泵業強中強
有很多客戶問道,為什么你家的不銹鋼齒輪油泵比其他廠家的貴呢？遠東泵業不銹鋼齒輪泵加工工藝,選材以及配件都與其他廠家不一樣,泵體材質為304不銹鋼材質,齒輪表面經氮化,遠東齒輪油泵密封為氟橡膠耐高溫,軸承為滾動軸承,摩擦系數小,發熱量低保證了泵的壽命及效率。如果您覺得都在說遠東泵業的不銹鋼齒輪油泵產品好，是遠東的宣傳，您大可不用擔心。這些匯聚了遠東人的心血的齒輪油泵，是客戶對我們的信任，也是我們對客戶的負責。
